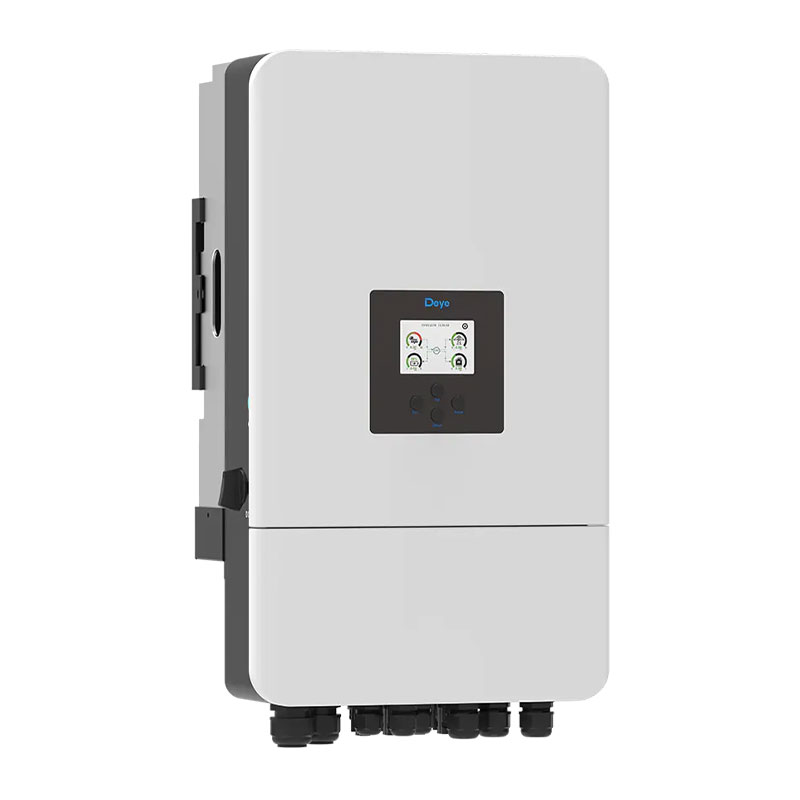

Deye 12KW Three Phase Low Voltage Hybrid Inverter

1600 ~1750€/pcVAT excluded

Inquiry Us Add Product

PREV: Deye 10KW Three Phase Low Voltage Hybrid Inverter NEXT: No next product

Product Description

Uni Z International B.V. +39 3444606026

Uni Z International B.V. [email protected]

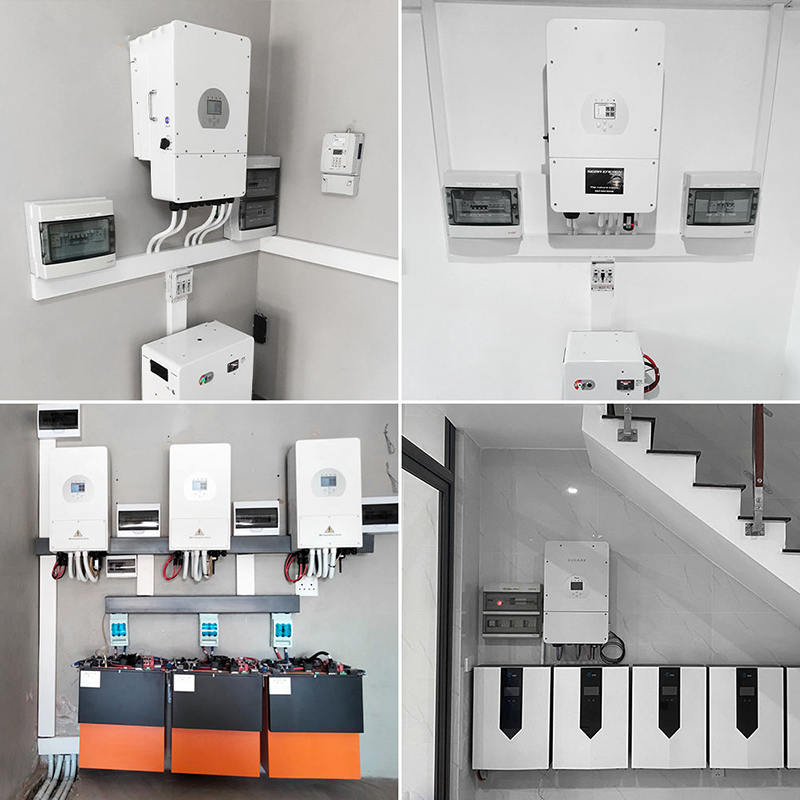

The 12KW inverter can meet the needs of photovoltaic systems within 15KW and provide high-power power output and storage. This inverter can be flexibly used in large residential buildings and small industrial and commercial buildings to realize real-time output utilization of solar energy and meet power storage needs.
Max. 10 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
48V low voltage battery, transformer isolation design
Passed IEC 61727, CEI 0-21, EN 50549, OVE-Richtlinie R25, VDE-AR-N 4105 certification

Model	SUN-12K-SG04LP3-EU
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40-60
Max.Charging Current (A)	240
Max.Discharging Current (A)	240
External Temperature Sensor	Yes
Charging Curve	3 Stages / Equalization
Charging Strategy for Li-lon Battery	Self-adaption to BMS
PV String Input Data
Max.DC Input Power (W)	15600
Rated PV Input Voltage (V)	550 (160-800)
Start-up Voltage (V)	160
MPPTVoltage Range (V)	200-650
Full Load DC Voltage Range(V)	350-650
PV Input Current(A)	26+13
Max.PV lsc(A)	34+17
No.of MPP Trackers	2
No.of Strings per MPP Tracker	2+1
AC Output Data
Rated AC Output Active Power (W)	12000
Max.AC Output Active Power (W)	13200
ACOutput Rated Current(A)	18.2/17.4
Max.AC Output Current (A)	20/19.1
Max.Three-phase Unbalanced Output Current(A)	27.3/26.1
Max Output short circuit current (A)	75
Max.Continuous AC Passthrough(A)	45
Peak Power(off grid)	2 time of rated power, 10 S
Power Factor	0.8 guiding to 0.8 lagging
Output Frequency and Voltage	50/60Hz; 3L/N/PE 220/380, 230/400Vac
Grid Type	Three Phase
Total Harmonics Current Distortion (THDi)	<3% (of nominal power)
DC Current Injection	<0.5% In
Efficiency
Max Efficiency	97.60%
Euro Efficiency	97.00%
MPPT Efficiency	99.90%
Protection
Integrated	Anti-islanding Protection, PV String Input Reverse Polarity Protection,Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,Output Shorted Protection
Surge Protection	DC Type III / AC Type III
Over Voltage Category	DC Type II/AC Type III
Certifications and Standards
Grid Regulation	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range(℃)	-40-60℃, >45℃ Derating
Cooling	Smart Cooling
Noise(dB)	≤45 dB
Communication with BMS	RS485; CAN
Weight(kg)	33.6
Cabinet Size (WxHxD mm)	422×702×281 (Excluding Connectors and Brackets)
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	5 Years (10 Years Optional)
