Deye SE-G5.1 Pro-B Lithium Battery Racked

750~990 €/pcVAT excluded

Inquiry Us Add Product

PREV: Deye RW-M6.1-B(LV) Lithium Battery NEXT: Deye AI-W5.1-B Lithium Battery 10KWh

Product Description

Uni Z International B.V. +39 3444606026

Uni Z International B.V. [email protected]

Safer

Cobalt Free Lithium lron Phosphate (LFP) Battery: Safety and long Lifespan, high efidiency and high power density.

Inelligent BMS, providing complete protection.

Reliable

Support highdischarge pover. IP20, natural coling, wide temperature range: -20C to 55*C.

Flexible

Modular design, easy to expand, Max. 64 units in parallel, Max. capacity of 327kWh.

Suited to residential and commercial apliations for increasing the slf-consumptionratio.

Convenient

Battery module auto networking, easy maintenance, support remotely monitoring and upgrade, support USB drive upgrade the firmware.

Eco-Friendly

Use environmental protection materials, the whole module non-toxic, pollution-free.

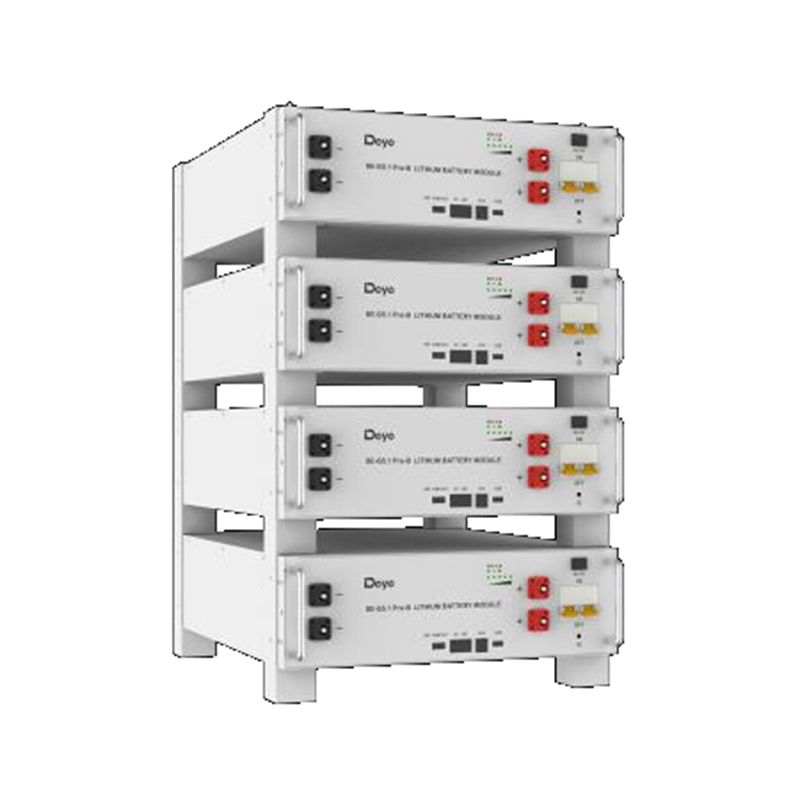

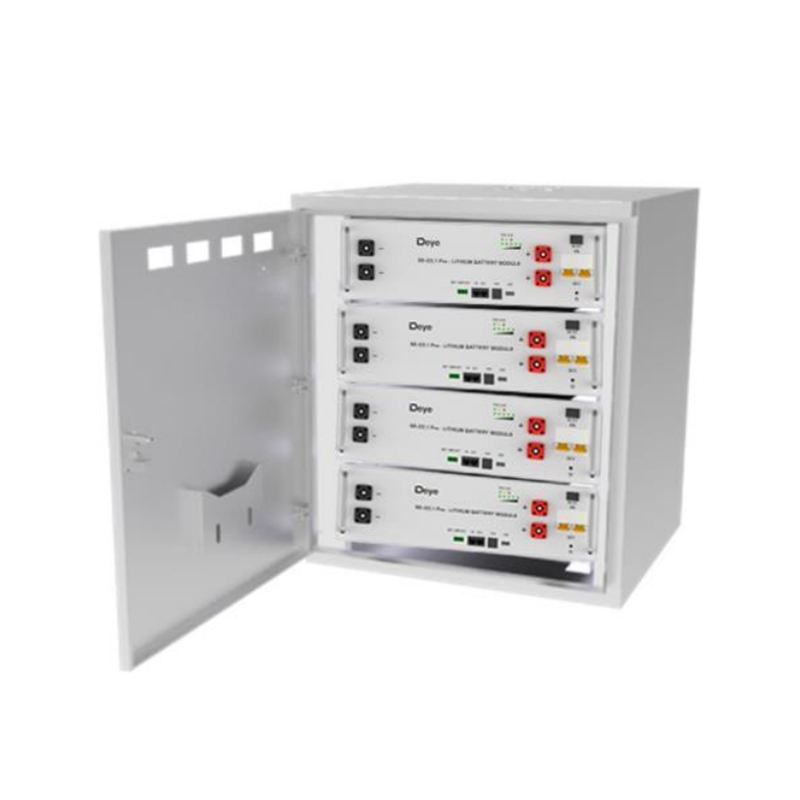

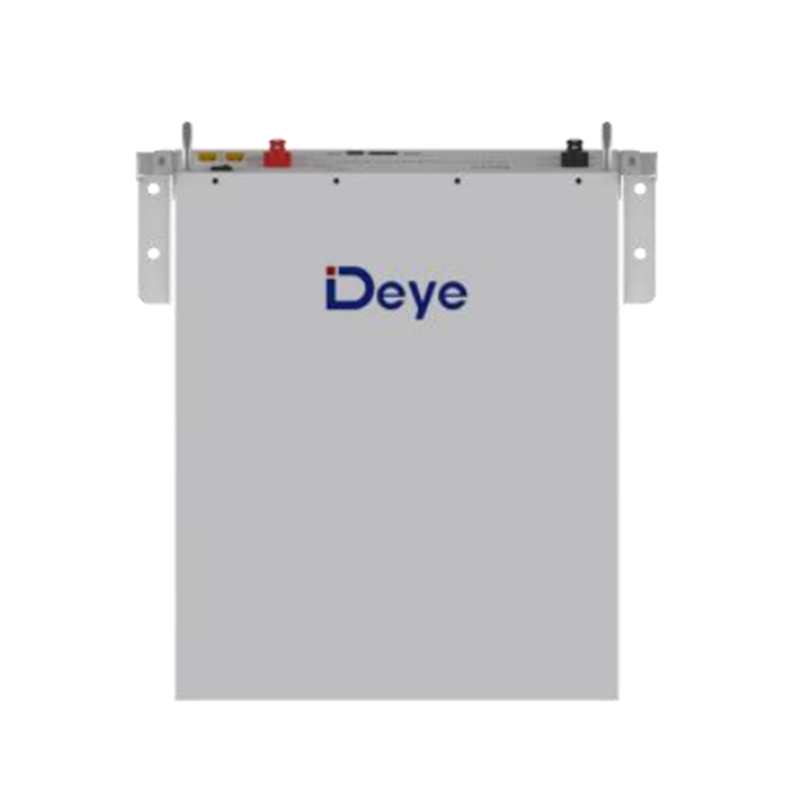

Three Mounting Methods

19inch Standard design, support rack-mounted, wall-mnounted, and floor-mounted, saving installaion space.

Model		SE-G5.1 Pro-B
Main Parameter
Battery Chemistry		LiFePO₄
Capacity (Ah)		100
Scalability		Max. 64 pcs pack (327kWh) in parallel (Max. 32 pcs no external setup)
Nominal Voltage (V)		51.2
Operating Voltage(V)		43.2~57.6
Nominal Energy (kWh)		5.12
Usable Energy (kWh)[1]		4.6
Charge/Discharge Current (A) [2]	Recommend	50
	Max.	100
	Peak(2mins,25℃)	150
Other Parameter
Recommend Depth of Discharge		90%
Dimension (W/H/D,mm)		440133540
Weight Approximate(kg)		45
Master LED Indicator		5LED(SOC:20%~SOC100%),3LED (working, alarming, protecting)
IP Rating of Enclosure		IP20
Operating Temperature		Charge: 0～55℃ ( Optional heating: -20℃~55℃ ), Discharge: -20℃～55℃
Storage Temperature		0～35℃
Humidity		5%~95%
Altitude		≤2000m
Cycle Life		≥6000(25℃±2℃,0.5C/0.5C,90%DOD,70%EOL)
Installation		Wall-Mounted, Floor-Mounted, Rack-Mounted (19-inch standard cabinet, cabinet depth ≥600mm )
Communication Port		CAN2.0, RS485
Warranty Period [3]		10 years
Energy Throughput		16MWh@70%EOL
Certification		UN38.3, IEC62619, CE,UK, VDE2510-50, CEI 0-21, FCC, UL1973, UL9540A

[1] DC Usable Energy, test conditions: 90% DOD, 0.5C charge & discharge at 25℃. System usable energy may vary due to system configuration parameters.
[2] The current is affected by temperature and SOC.
[3] Conditions apply, refer to Deye Warranty Letter.

Model	Accessories Parts Description	Remark
3U-LBCable150	Battery Parallel Cable (Included)	Battery power and communication parallel connection cable (when using the 3U-bracket floor mount)
3U-LPCable1500	Hybrid inverter Cable (Included)	Battery power and communication cable connect with hybrid inverter
3U-LRfe	Battery Rack Fixed Ears (Included)	Used for battery fixing with 19inch rack or cabinet
3U-Bracket	Battery Brackets (Included)	Simple stacking bracket, 1 unit including 4 pcs brackets, Max. stacking 4 floors
3U-W-Bracket	Battery Wall-Mounted Brackets and screws (Included)	Simple wall hanging support.
