Safer
Cobalt Free Lithium Iron Phosphate (LFP) Battery, has a safe and long lifespan, high efficiency and high-power density. Intelligent BMS, providing complete protection.
Reliable
Support high discharge power. IP65, natural cooling, wide temperature range: -20℃ to 55℃.
Flexible
Modular design, easy to expand, Max. 32 units in parallel, Max. capacity of 196kWh. Suited to residential and commercial applications for increasing the self-consumption ratio.
Convenient
Battery module auto networking, Automatic IP addressing, easy maintenance, remotely monitoring and upgrade, support USB drive upgrade the firmware.

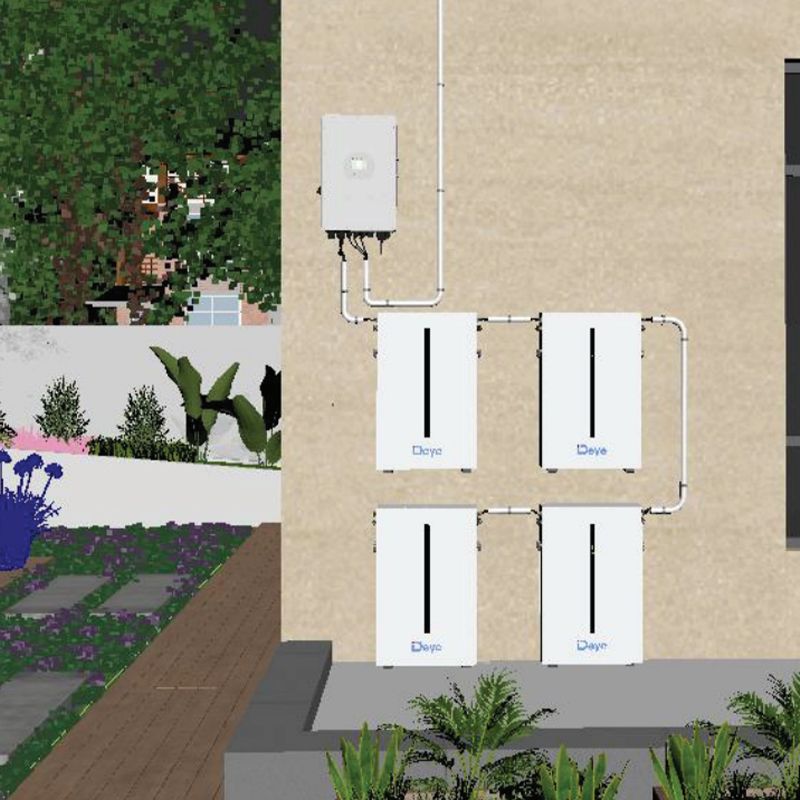

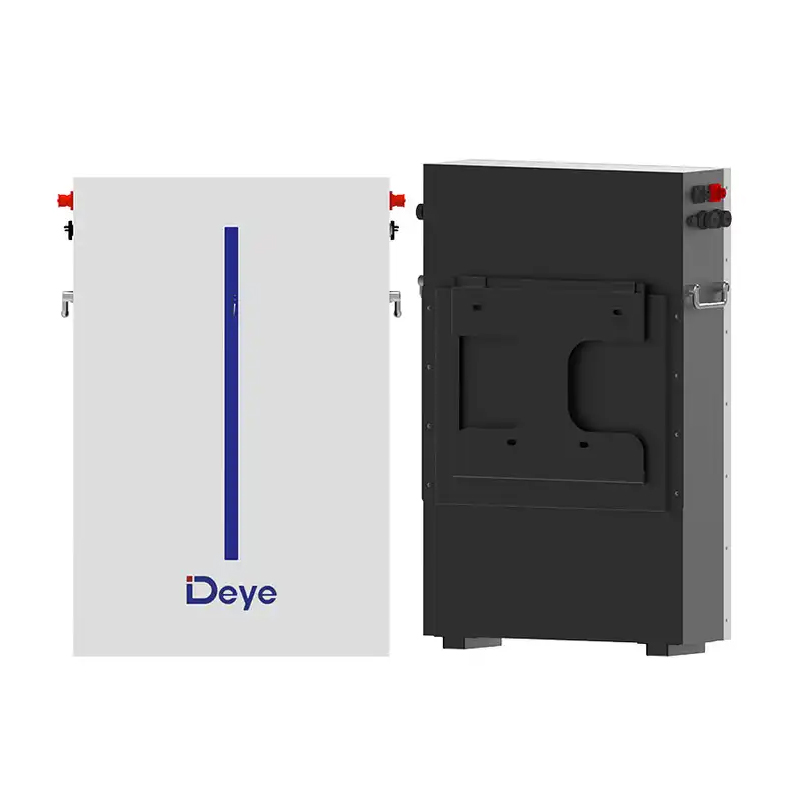

Wall-Mounted
Flat design, wall-mounted, saving installation space.
Model | RW-M6.1-B | |
Main Parameter | ||
Battery Chemistry | LiFePO4 | |
Capacity (Ah) | 120 | |
Scalability | Max.32 pcs in Parallel(196kWh) | |
Nominal Voltage (V) | 51.2 | |
Operating Voltage(V) | 43.2~57.6 | |
Energy(kWh) | 6.14 | |
Usable Energy (kWh) | 5.53 | |
Rated DC Power(kW) | 3.07 | |
Charge/Discharge Current (A)[2] |
Recommend | 60 |
Max. | 100 | |
Peak(2mins,25℃) | 150 | |
Other Parameter | ||
Recommend Depth of Discharge | 90% | |
Dimension (W/H/D,mm) | 510*740*145(Without Base, depth of 161mm with Hanging Board) | |
Weight Approximate(kg) | 58 | |
Master LED Indicator | 5LED(SOC:20%~SOC100%),3LED (working, alarming, protecting) | |
IP Rating of Enclosure | IP65 | |
Operating Temperature | Charge:0~55℃ / Discharge:-20℃~55℃ | |
Storage Temperature | 0℃~35℃ | |
Humidity | 5%~95% | |
Altitude | ≤2000m | |
Cycle Life | ≥6000(25℃±2℃,0.5C/0.5C,70%EOL) | |
Installation | Wall-Mounted, Floor-Mounted | |
Communication Port | CAN2.0, RS485 | |
Warranty Period l3] | 10 years | |
Energy Throughput | 20MWh@70%EOL | |
Certification | UN38.3, IEC62619,CE,CEI 0-21, VDE2510-50 |
[1] DC Usable Energy, test conditions: 90% DOD, 0.5C charge & discharge at 25℃. System usable energy may vary due to system configuration parameters.
[2] The current is affected by temperature and SOC.
[3] Conditions apply, refer to Deye Warranty Letter.
[4] Made in China.
Introduction
This series lithium iron phosphate battery is one of new energy storage products developed and produced by Deye ,
it can be used to support reliable power for various types of equipment and systems.
This series is especially suitable for application scene of high power, limited installation space, restricted load-
bearing and long cycle life.
This series has a built-in BMS battery management system, which can manage and monitor cells information including
voltage, current, and temperature. What’s more, BMS can balance cells charging to extend cycle life.

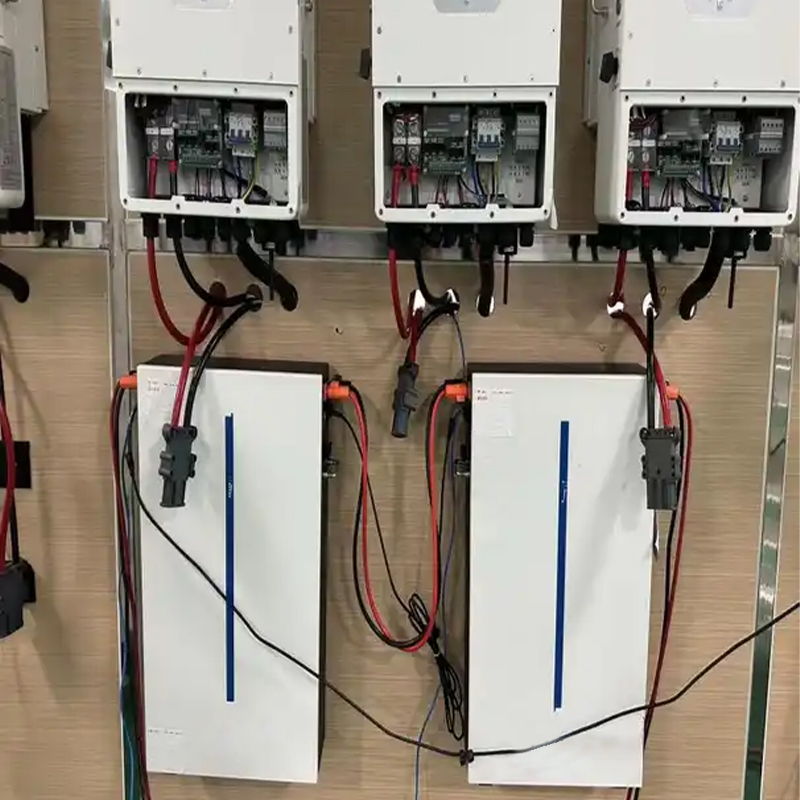

Multiple batteries can connect in parallel for larger capacity and longer power-supporting duration.
Model | Accessories Parts Description | Remark |
RW-M6.1-B-Hboard | Battery Hanging Board (Included) |
Used for battery fixing on the wall |
RW-M6.1-B-PCable | Hybrid inverter Cable (Included) |
Battery power and communication cable connect with hybrid inverter |
RW-M6.1-B-BCable | Battery Parallel Cable (Included) |
Battery power and communication parallel connection cable |
RW-M6.1-B-Fixed support | Fixed supports (Included) |
When floor-mounted, fixing the battery to the wall |
