Home / Products / Balcony/Garden Photovoltaic Kits / Balcony solar kit With Battery / Balcony solar kit 600W with 1.5kwh battery
-
FAST SHIPPING
-
COMPETITIVE PRICE
-
EXCELLENT AFTER-SERVICE
Product Search
Product Series
Balcony solar kit 600W with 1.5kwh battery
860~1100 €/setVAT excluded
- Product Description
+39 3444606026
Designed to be installed on balconies, gardens, flat roofs, walls, and other limited outdoor spaces, the solar power system is a cost-effective and environmentally friendly way to generate electricity and reduce energy costs.
What is included in this kit:
Half Cell Shingled 400W All Black Solar Panel 2pc
600W 220V Solar Micro Inverter 1pc
SF100-E 1.5kwh battery 1pc (Supports capacity expansion)
Solar Panel Bracket 2set
MECHANICAL PROPERTIES
| Battery type | Monocrystalline |
| Component weight | 21kg |
| Component Size | 1722×1134×30mm |
| Number of Cells | 108 (6×18) |
| Cable cross-sectional area | 4m㎡ |
| Junction Box | IP68, 3 diodes |
| Gonnsctor | MC4 compatible connector |
| Packaging information | 36 pieces per pallet |
WORKING PARAMETERS
| Maximum system voltage | 1500V (TUV) |
| Operating temperature | -40℃~+85℃ |
| Maximum fuse current rating | 25A |
| Maximum static load, front | 5400pa |
| Maximum static load, back side | 2400pa |
| nominal battery operating temperature | 45±2℃ |
| Application Level | class A |
TEMPERATURE CHARACTERISTICS
| Power | -0.35%/℃ |
| Open circuit voltage | -0.274%/℃ |
| Short-circuit current | -0.044%/℃ |
ELECTRICAL PERFORMANCE PARAMETERS UNDER STC
| Modle | DHM54T35-395/MR | DHM54T35-400/MR | DHM54T35-405/MR | DHM54T35-410/MR | DHM54T35-415/MR |
| Maximum power (W) | 395 | 400 | 405 | 410 | 415 |
| Voltage at max. power point (VMP/V) | 30.71 | 31.01 | 31.31 | 31.6 | 31.89 |
| Current at max. power point (IMP/A) | 12.86 | 12.9 | 12.94 | 12.97 | 13.01 |
| Open circuit voltage (VOC/V) | 36.72 | 37.02 | 37.24 | 37.5 | 37.73 |
| Short circuit current (ISC/A) | 13.67 | 13.75 | 13.81 | 13.88 | 13.95 |
| Component efficiency [%] | 20.23% | 20.48% | 20.74% | 21.00% | 21.25% |
| Power tolerance (W) | 0~+5 | ||||
| Standard test environment | Irradiance 1000W/㎡,cell temperature 25℃,spectrum AM 1.5 | ||||
| Note: Due to continuous innovation, research, and product upgrading, the parameters in this specification are not just a component, but can only be used for comparison between different types. | |||||
ELECTRICAL PERFORMANCE PARAMETERS UNDER NOCT
| Modle | DHM54T35-395/MR | DHM54T35-400/MR | DHM54T35-405/MR | DHM54T35-410/MR | DHM54T35-415/MR |
| Maximum power (W) | 294 | 298 | 301 | 305 | 309 |
| Voltage at max. power point (Vmp)[V] | 28.7 | 28.99 | 29.29 | 29.6 | 29.88 |
| Current at max. power point (lmp)[A] | 10.24 | 10.27 | 10.29 | 10.31 | 10.33 |
| Open circuit voltage (Voc)[V] | 34.71 | 34.94 | 35.14 | 35.35 | 35.55 |
| Short circuit current (Isc)[A] | 11.37 | 11.43 | 11.5 | 11.58 | 11.65 |
| Nominal cell operating temperature(NOCT) | Irradiance 800W/m³, ambient temperature 20℃, spectrum AM1.5G, wind speed 1m/s | ||||
| Model | EVT560 |
| Input Data (DC) | |
| Recommended Input Power Range(STC) | (180W-450W+) *2 |
| Max. DC Input (V) | 54V |
| Isc PV (Absolute Max.) (A) | 15A |
| Operating Range (V) | 18V-54V |
| Max. Input Current (A) | 12A*2 |
| MPPT Voltage Range (V) | 24V-45V |
| Output Data (AC) | |
| Normal Voltage (Vac) | 220V/230V |
| Voltage Range (Vac) | 189-260V |
| Current (Max. continuous) (A) | 2.12k |
| Frequency (Hz) | 50Hz/60Hz |
| Frequency Range (Hz) | 47.5-52.5Hz/ 57.5-62.5Hz |
| Power (Max. continuous) (W) | 600W |
| Power Factor/Rated (default) | +/-0.95 |
| Total Harmonic Distortion | <3% |
| Maximum Units Per Branch (12AWG Cable) | 8 Units |
| Efficiency | |
| Peak Efficiency | 96.80% |
| MPPT Efficiency | 99.90% |
| Nighttime Power Consumption | <100mW |
| Features | |
| Communication | PLCC (Power Line Carrier Communication) |
| Compliance | VDE-AR-N 4105, IEC/EN61000,IEC/EN62109-1/2,EN50549-1/2019,TOR 2019, C10/11:2019,C日 0-21 UTE C15-712-1：2013,VFR 2019 |
| Warranty | 15 years (20 years optional) |
| Others | |
| Ingress Protection (IP) | IP 67 |
| Protective CLass | Class I |
| Temperature(℃) | -40℃ to +65℃ |
| Relative Humidity | 0% - 98% |
| Overvoltage Category | OVC III (AC Main), OVC II (PV) |
| Inverter Isolation | High Frequency Isolated |
| Weight | 2.8kg |
| Dimensions (W*H*D) | 248mm*169mm*27.5mm |

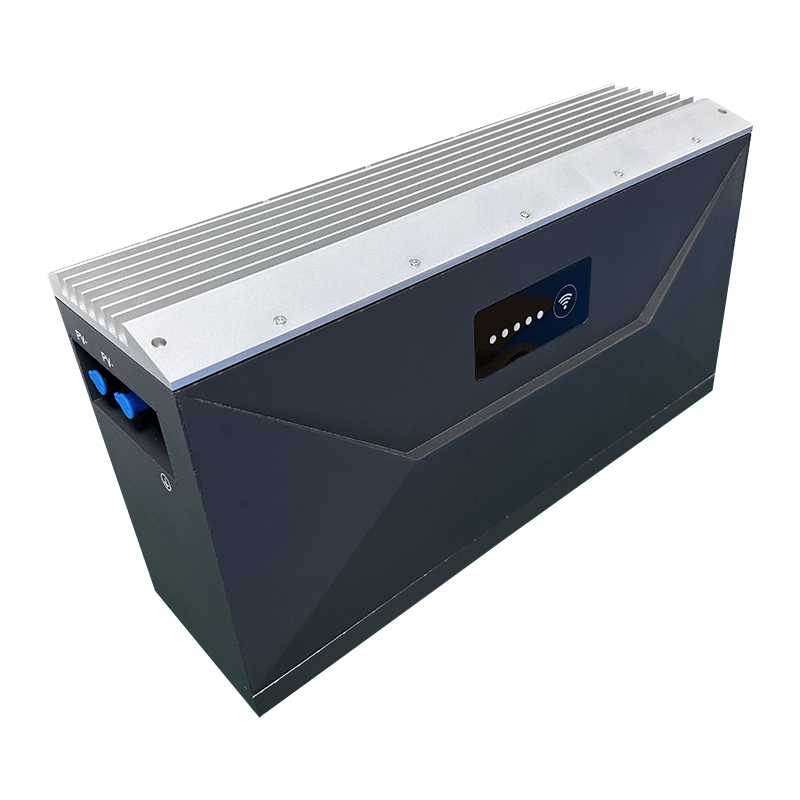

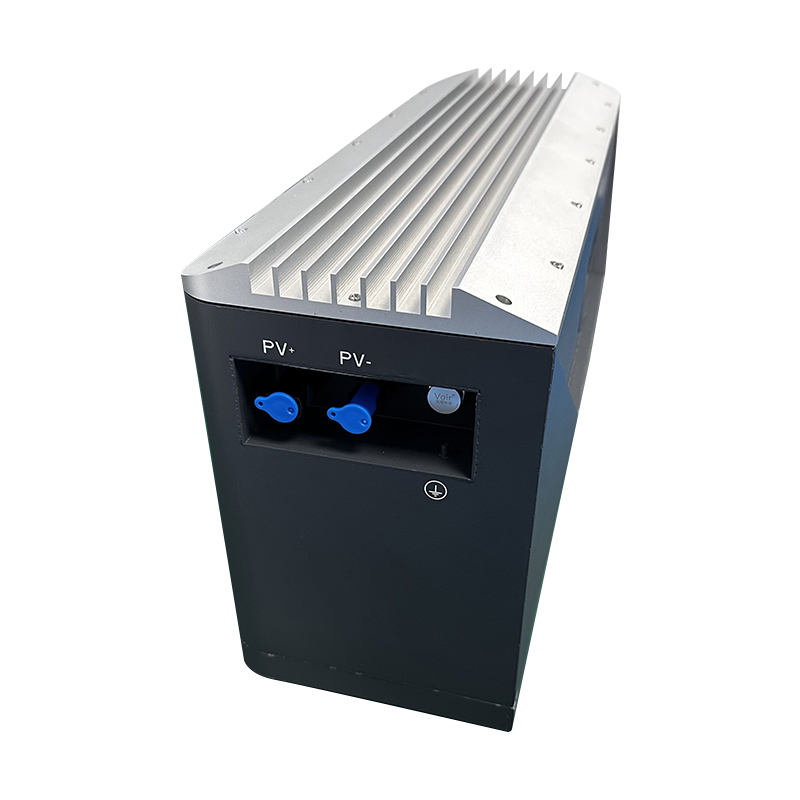

SF100 Balcony Energy Storage system
| Item | Specification | |
| Appearance | Model | SF100 |
| Weight | 24Kg±0.2kg | |
| Size | 490mm*170mm*310mm | |
| Color | Grey (customized) | |
| Battery System | Rated Voltage | 51.2V |
| Work Voltage Range | 43.2-58.4V | |
| Single Cell capacity | 30Ah | |
| Battery Type | LiFeP04 battery | |
| Rated electricity capacity | 1.536KWh | |
| DC Input Voltage Range(PV) | 10V-90V | |
| MPPT Voltage Range MPPT | 40-90V | |
| Standard Charge/Discharge Current | lports*15A(Tota l800W)/lports*15A(Tota l800W) | |
| Input Current/Power(PV-Battery) | lports*≤20A/50-800W | |
| Charge Voltage | 58.4V | |
| IP Grade | IP 65 | |
| Operating temperature demanded | -20~55℃ | |
| relative humidity | 60 ±25% | |
| Storage temperature | 5-30℃ | |
| Altitude range | ≤2000m | |
Product packing list Product packing list
| Serial number | Item | Quantity |
| 1 | Host | 1 |
| 2 | Installation Brackets | 2 |
| 3 | Screws | 4 |
| 4 | Screw Gasket | 4 |
| 5 | Screw installation Rubber Plug | 4 |
| 6 | PV+ Extension Cable 3M | 1 |
| 7 | PV- Extension Cable 3M | 1 |
| 8 | PV+ Parallel Connection Cable | 1 |
| 9 | PV- Parallel Connection Cable | 1 |
