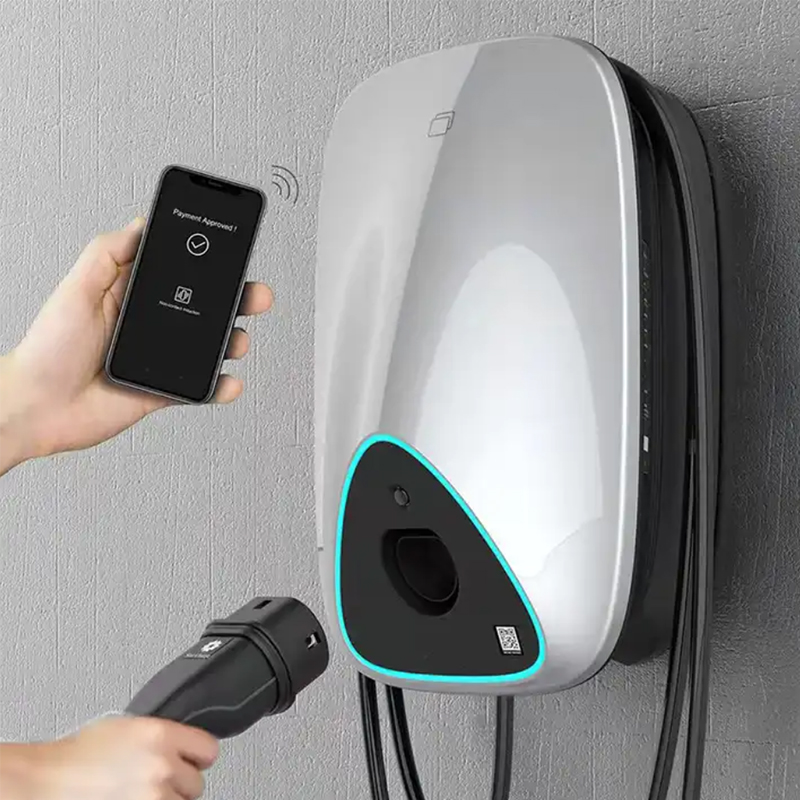

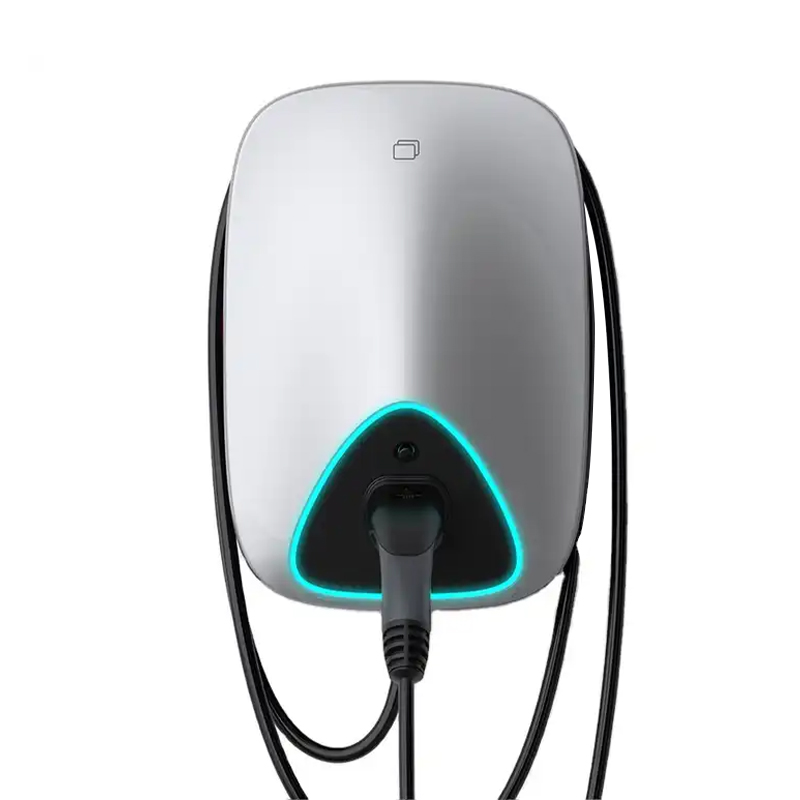

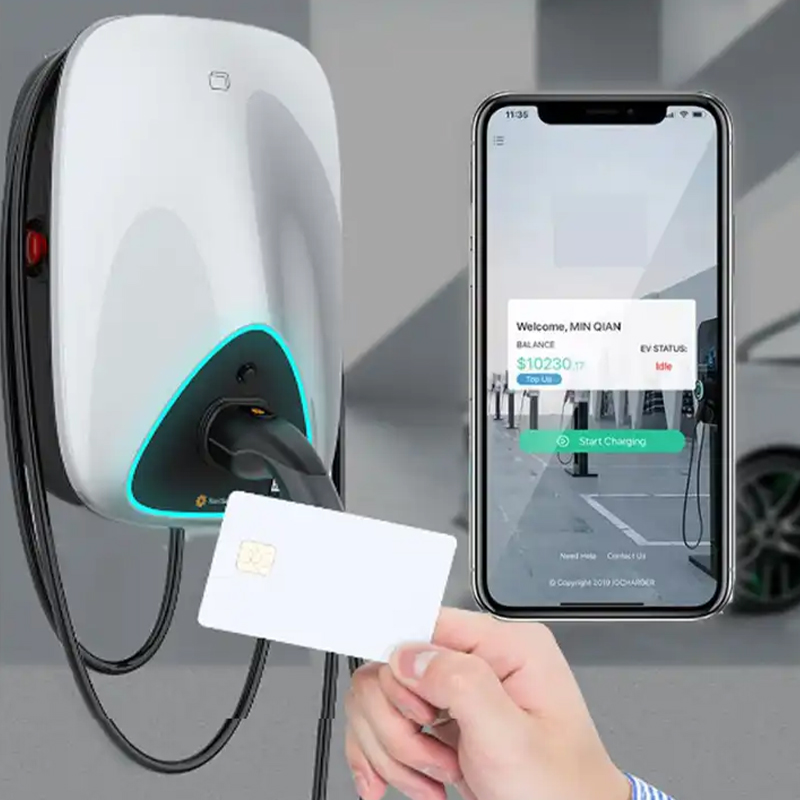

7.3KW EV CHARGER A7300S1-E CHARGING SOCKET

369~500 €/pcVAT excluded

Inquiry Us Add Product

PREV: 7.3KW EV CHARGER A7300P1-E CHARGING PLUG NEXT: No next product

Product Description

Uni Z International B.V. +39 3444606026

Uni Z International B.V. [email protected]

This electric car charger has a 7.3kW (32A) charging speed. Charging cables can be purchased separately. Floor stands can also be purchased separately. The wall-mounted chargers have built-in earthing so there is no need for earth rod installation. No groundwork is is needed or additional costs.

Power: 7.3kW

Output Current: Max.32A

Output Voltage: 230V AC

Type 2 cable charging connector

Compliant with OCPP 1.6 (JSON)/2.0

App operation or RFID authentication or plug, play & 4G

Protection Grade: IP55

-30~50℃ Wide Operating Temperature

Warranty time: 3 years

MODEL	A7300S1-E
TYPE	CHARGING SOCKET
INPUT
Wiring Scheme	1P+N+PE
Voltage	230Vac, ±20%
Maximum Current	32A
Frequency	50/60HZ
OUTPUT
Voltage	230Vac, ±20%
Maximum Current	32A
Rated Power	7.3kW
USER INTERFACE & CONTROL
Connector Type	Type 2 socket
RFID Reader	Mifare ISO/IEC 14443 A
Start Mode	Plug&Play/RFID card/App
COMMUNICATION
WiFi, Bluetooth	Yes
4G	Optional (coming soon)
OCPP	OCPP 1.6 JSON, OCPP 2.0 optional (coming soon)
ENVIRONMENT
Installation	Wall-mount/ Post-mount
Operating Temperature	-30℃ ~ 50℃
Operating Humidity	5% ~ 95% No condensation
Operating Altitude	≤2000m
DIMENSION AND WEIGHT
Product Dimension	320190144.5 mm
Product Weight	2.0kg
SAFETY
IP protection rating	IP55
IK protection rating	IK08
Residual Current Detection	AC 30mA / DC 6mA
Electrical Protection	Over current protection, Residual current protection, and Ground protection. Surge protection. Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection
EMC	Class B
Certification	CE
Certification Standard	3
