MODEL | A011KP1-E-2 |
TYPE | CHARGING PLUG |
INPUT | |
Wiring Scheme | 3P+N+PE |
Voltage | 400Vac, ±20% |
Maximum Current | 16A |
Frequency | 50/60HZ |
OUTPUT | |
Voltage | 400Vac, ±20% |
Maximum Current | 16A |
Rated Power | 11kW |
USER INTERFACE & CONTROL | |
Connector Type | Type 2 cable |
RFID Reader | Mifare ISO/IEC 14443 A |

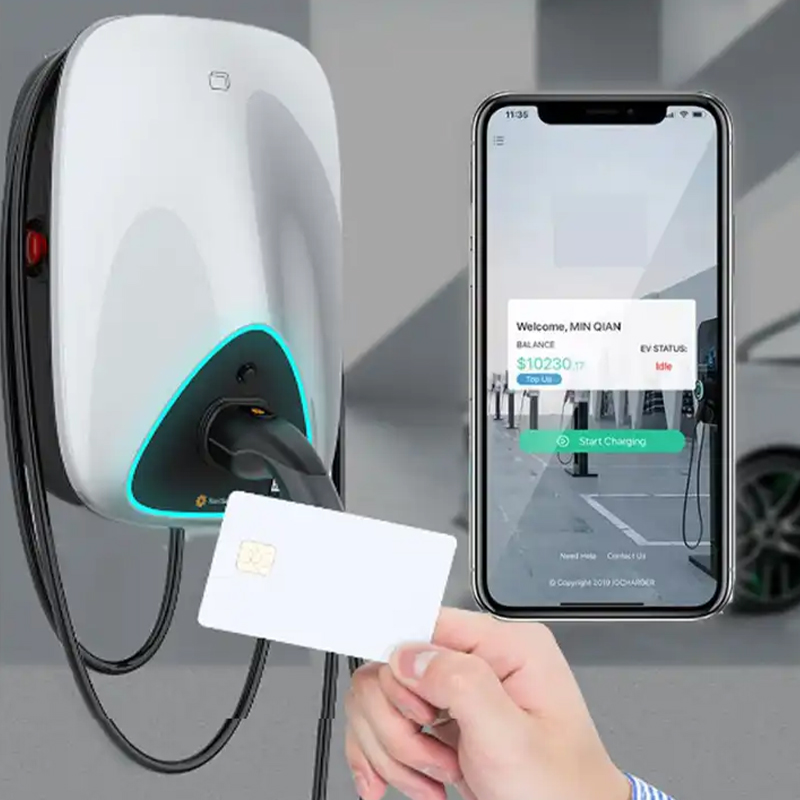

Start Mode | Plug&Play/RFID card/App |
COMMUNICATION | |
WiFi, Bluetooth | Yes |
4G | Optional |
OCPP | OCPP 1.6 JSON, OCPP 2.0 optional |
ENVIRONMENT | |
Installation | Wall-mount / Post-mount |
Operating Temperature | -30℃ ~ 50℃ |
Operating Humidity | 5% ~ 95% No condensation |
Operating Altitude | ≤2000m |
DIMENSION AND WEIGHT | |
Product Dimension | 320*190*130 mm |
Product Weight | 3.55kg |
SAFETY | |
IP protection rating | IP55 |
IK protection rating | IK08 |
Residual Current Detection | AC 30mA/DC 6mA |
Electrical Protection | Over current protection. Residual current protection. Ground protection. Surge protection. Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection |
EMC | Class B |
Certification | CE |
Certification Standard | EN/IEC 61851-1: 2019, EN/IEC 61851-21-2: 2021 |
Uni Z International B.V. is committed to providing you with a full range of solar energy storage products and solutions. We guide the industry and provide you with products at more favorable prices, more timely logistics and delivery, and more secure after-sales and technical support. 11KW EV CHARGER A011KP1-E-2 CHARGING PLUG Suppliers and Company in China. We bring you one-stop solutions for smarter, more efficient and more reliable photovoltaic energy storage products. Wholesale 11KW EV CHARGER A011KP1-E-2 CHARGING PLUG.
We not only provide high-end solar energy storage products and technologies, but also provide you as an installer with comprehensive training and technical support. We believe that only if you have the latest knowledge and skills can our end customers enjoy the advantages of more advanced solar technology.
At Uni Z International B.V., we not only provide products, but also seek to establish a long-term and close partnership with you. We look forward to working with you to meet the challenges and opportunities of the future of solar energy.Start your solar energy journey, choose Uniz Solar and move towards a cleaner, more sustainable future!
