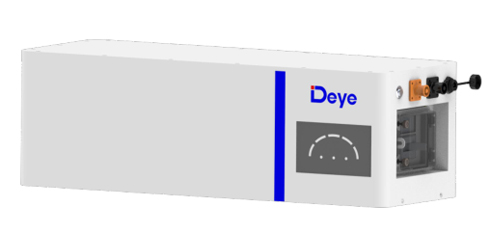

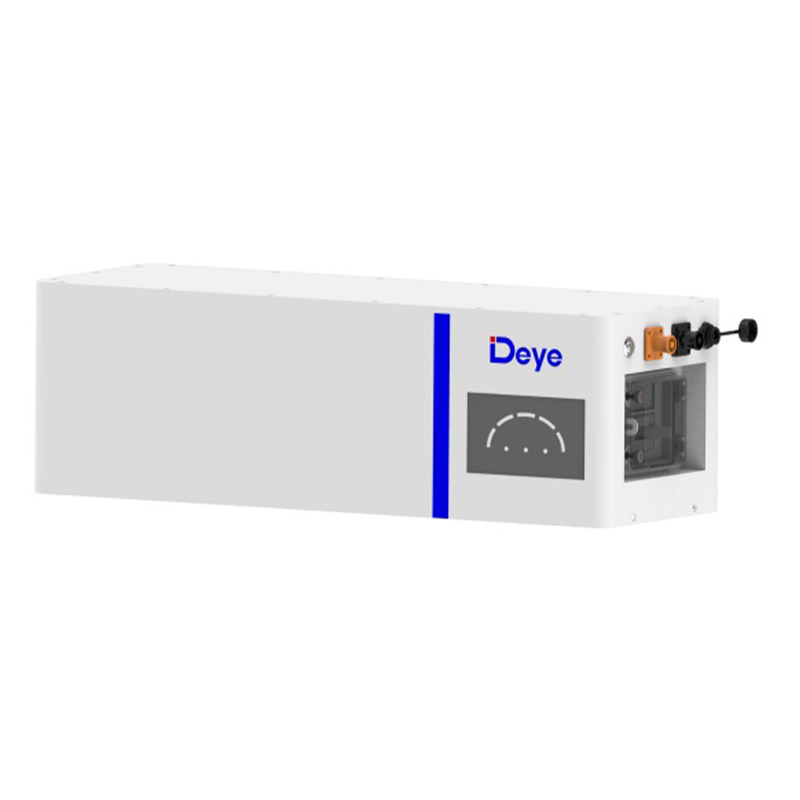

Deye AI-W5.1-B Lithium Battery 10KWh

2080~2130 €/pcVAT excluded

Model		AI-W5.1-B combinations
Main Parameter
Battery Model Number		AI-W5.1-B	AI-W5.1-B*2	AI-W5.1-B*3	AI-W5.1-B*4	AI-W5.1-B*5	AI-W5.1-B*6
Number of battery units in parallel (Optional)		1	2	3	4	5	6
Battery Chemistry		LiFePO4
Built-in Circuit Breaker		125A 2P, 60Vdc
Battery Module Energy (kWh)		5.12
Battery Module Voltage (V)		51.2
Battery Module Capacity (Ah)		100
Nominal Voltage (V)		51.2
Operating Voltage(V)		43.2~57.6
Nominal Energy (kWh)		5.12	10.24	15.36	20.48	25.6	30.72
Usable Energy (kWh) [1]		4.6	9.2	13.8	18.4	23	27.6
Rated DC Power (KW)		2.5	5	7.5	10	12	12
Charge/Discharge Current (A) [2]	Recommend	50	100	150	200	250	250
	Max.	100	180	250	250	250	250
	Peak(10s,25℃)	150	270	360	360	360	360
Other Parameter
Recommend Depth of Discharge		90%
System Dimension (W/D/H, mm)		720255569	720255850	7202551131	7202551412	7202551693	7202551974
System Weight (kg)		74.5	127.5	180.5	233.5	286.5	339.5
Battery Module Dimension(W/D/H, mm)		720255300 (without terminal parts)
Battery Module Weight (kg)		53
Master LED Indicator		Battery module: 3LED (working, alarming, protecting), PDU module: 5LED(SOC:20%~100%)&3LED (working, alarming, protecting)
IP Rating of Enclosure		IP65 (after stacking)
Operating Temperature		Charge: 0～55℃ / Discharge: -20℃～55℃
Storage Temperature		0℃～35℃
Humidity		5%~95%
Altitude		≤2000m
Installation		Wall-Mounted, Floor-Mounted
Communication Port		CAN2.0, RS485
Cycle Life		≥6000(25℃±2℃,0.5C/0.5C,90%DOD,70%EOL)
Energy Throughput		16MWh(Battery Module @70%EOL)
Warranty Period[3]		10 years
Certification		UN38.3, IEC62619, CE, UK, VDE2510-50, CEI 0-21,CE-LVD, CEC

[1] DC Usable Energy, test conditions: 90% DOD, 0.5C charge & discharge at 25℃. System usable energy may vary due to system configuration parameters.
[2] The current is affected by temperature and SOC.
[3] Conditions apply, refer to Deye Warranty Letter.
[4]Made in China.

Introduction

This series lithium iron phosphate battery is one of the new energy storage products developed and produced by Deye, it can be used to
support reliable power for various types of equipment and systems.
This series is especially suitable for application scenes of high power, limited installation space, restricted load-bearing, and long cycle life.
This series has a built-in BMS battery management system, which can manage and monitor cell information including voltage, current, and
temperature. What’s more, BMS can balance cell charging to extend cycle life.
Multiple batteries can connect in parallel for larger capacity and longer power support.

Battery Pack Accessories

Model	Accessories Parts Description	Remark
AI-W5.1-B (individual package)	5.12kWh Battery Module	Stacked battery modules, each 5.12kWh, a single string can be stacked and installed 1〜6 (battery capacity 5〜30kWh)
AI-W5.1-PDU1-B+Base (individual package)	Power Distribute Unit I (Included)	Battery power and communication interface connect with Inverter and LED display system status
	Battery Base (Included)	The bottom support seat
	AI-W5.1-PCable1500 (Included)	Battery power and communication cable connect with hybrid inverter
