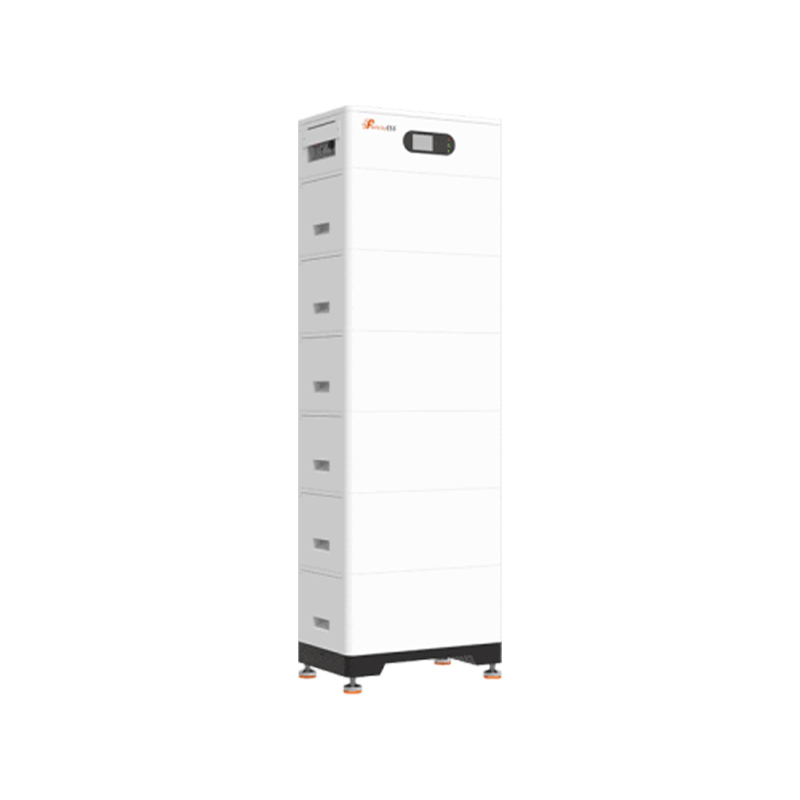

FelicityESS LUX-X-96050HMG01（LiFePO4 Battery，5.12KWH）

780 €/pcVAT excluded

Inquiry Us Add Product

PREV: FelicityESS LUX-X-96050HCG01(BMS) NEXT: FelicityESS High voltage LUX Series Lithium-Ion Battery LUX-Y-48100HG01

Product Description

Uni Z International B.V. +39 3444606026

Uni Z International B.V. [email protected]

Model: LUX-X-96050HG01
Capacity: 5.12~30.72 kWh
Nominal Voltage:102.4V
Max. Continuous Charge/Discharge Current: 50A Scalability: 4 Clusters (122.88kWh) Protection Level: IP65
Warranty: 10 years
Flexible Installation: Stack-Mounted
Multipul Protection: built-in smart BMS Breaker and Fuse
Inverter Interface Protection
Fire Extinguishing Aerosol Inside

Felicity ESS’s LUX-X Series Stackable LiFePO4 Battery is widely used in a variety of scenarios such as Home Energy Storage, Industrial and Commercial backup power. Through precise engineering stackable design and strict manufacturing standards, each LUX-X battery can be easily stacked with other parts for easy installation to form an efficient and compact energy storage system. This design not only saves space, but also makes system expansion and maintenance extremely simple and convenient. Each LUX-X-96050HG01 battery has a capacity of 5.12kWh, and up to 6 batteries can be stacked, with a total of 30.72kWh. Up to 4 batteries can be connected in parallel.
For the two existing high-voltage battery models: This model’s master is available in both parallel and non-parallel versions. Please confirm with technical personnel before purchasing.

Model		LUX-X-96050HG01
Battery Type		LiFeP04
Module Energy		5.12kWh
Module Nominal Voltage		102.4V
Module Capacity		50Ah
Number of Battery Modules		1	2	3	4	5	6
System Energy		5.12kWh	10.24kWh	15.36kWh	20.48kWh	25.6kWh	30.72kWh
System Nominal Voltage		102.4V	204.8V	307.2V	409.6V	512V	614.4 V
System Operating Voltage		96-115.2V	192-230.4V	288-345.6V	384-460.8V	480-576V	576-691.2V
Recommend Charge/Discharge current		25A	25A	25A	25A	25A	25A
Max. continuous charge/discharge current[1]		50A	50A	50A	50A	50A	50A
Peak Charge/Discharge current(15S)		60A	60A	60A	60A	60A	60A
Depth of discharge(DOD)		≥95%
Display type		LED + LCD(Touch)
Protection Level		IP65
Operating Temperature Range		Charge:0~ +55℃/Discharge:-20°C~ +55℃
Storge Temperature Range		0℃~+35℃
Humidity		5%~95%
Altitude		≤2000m
Cycle Life[2]		≥6000 Cycles
Installation		Stacking-Mounting / Floor-Mounting
Protection		Built-in smart BMS, Breaker
Communication Port		RS485/CAN
Warranty Period [3]		10 Year
Control Module LUX-X-96050HCG01	Net Weight	12.5 kg
	Gross Weight(with base)	24.5 kg
	Product Dimension	600x385x200 mm
	Package Dimension{with base)	712x497x352 mm
Battery Module LUX-X-96050HMG01	Battery Designation[4]	IFpP/41/150/102/[(1P32S)NSJM/-10+50/90
	Net Weight	57.5 kg
	Gross Weight	62 kg
	Product Dimension	600x385x260 mm
	Package Dimension	712x497x378 mm
[1] Max. continuous charge/discharge current is affected by temperature and SOC.
[2] Test conditions: 0.2C Charging/Discharging @25°C, 80% DOD.
[3] Conditions apply, refer to FelicityESS Warranty Letter
[4] "N" means the number of battery packs connected parallel and should not exceed 6.(N<6)
