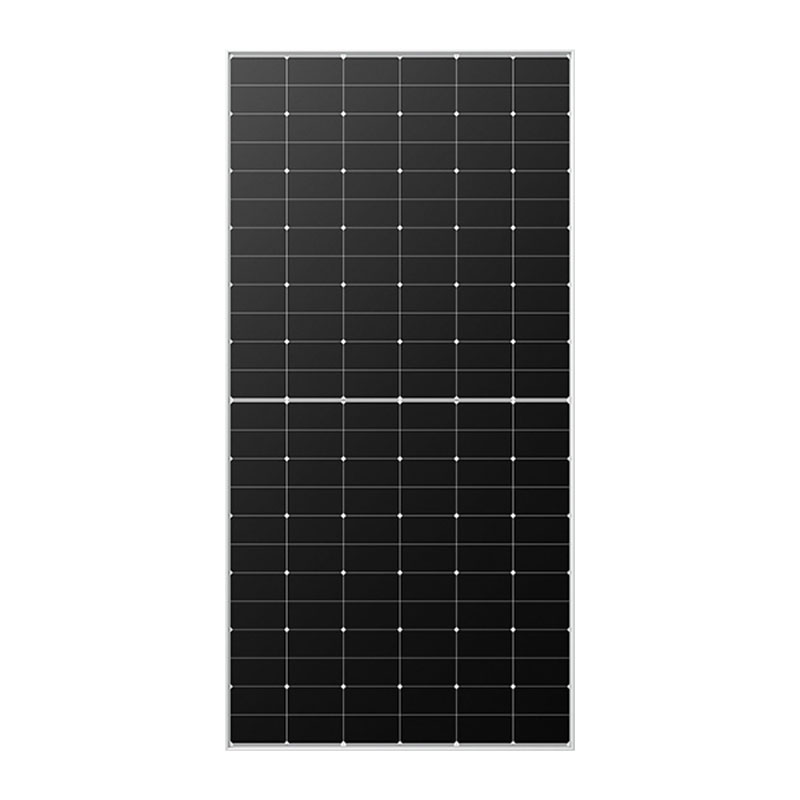

Longi LR5-72HTH 585M

63.8~66.99€/pcVAT excluded

Inquiry Us Add Product

PREV: Longi LR5-72HTD-570M NEXT: Longi LR7-72HGD 610M

Product Description

Uni Z International B.V. +39 3444606026

Uni Z International B.V. [email protected]

Solid and Durable: The 3.2mm coated tempered glass single-glass construction provides durability. The maximum module efficiency is 22.6%. It is not a bifacial module. The 25-year warranty for extra linear power output indicates its expected long service life. In terms of fire safety, it meets the UL type 1 or 2 and IEC Class C fire ratings.
Efficient Power Generation: The module is designed for good energy generation performance with its electrical characteristics optimized for different operating conditions.

Mechanical Parameters

Cell Orientation	144 (6×24)
Junction Box	IP68
Output Cable	4mm 2 , +400, -200mm/±1400mm length can be customized
Glass	Single glass, 3.2mm coated tempered glass
Frame	Anodized aluminum alloy frame
Weight	27.5kg
Dimension	2278×1134×35mm
Packaging	31pcs per pallet / 155pcs per 20’GP / 620pcs per 40’HC

Electrical Characteristics

STC : AM1.5 1000W/m 2 25℃ NOCT : AM1.5 800W/m 2 20℃ 1m/s Test uncertainty for Pmax: ± 3%
Module Type	LR5-72HTH-565M		LR5-72HTH-570M		LR5-72HTH-575M		LR5-72HTH-580M		LR5-72HTH-585M
Testing Condition	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power (Pmax/W)	565	422	570	426	575	430	580	433	585	437
Open Circuit Voltage (Voc/V)	51.76	48.6	51.91	48.74	52.06	48.88	52.21	49.02	52.36	49.16
Short Circuit Current (Isc/A)	14.01	11.31	14.07	11.36	14.14	11.42	14.2	11.47	14.27	11.52
Voltage at Maximum Power (Vmp/V)	43.61	39.79	43.76	39.93	43.91	40.07	44.06	40.2	44.21	40.34
Current at Maximum Power (Imp/A)	12.96	10.61	13.03	10.68	13.1	10.73	13.17	10.78	13.24	10.84
Module Efficiency(%)	21.9		22.1		22.3		22.5		22.6

Operating Parameters

Operational Temperature	-40℃〜+85℃
Power Output Tolerance	0〜3%
Voc and Isc Tolerance	±3%
Maximum System Voltage	DC1500V(IEC/UL)
Maximum Series Fuse Rating	25A
Nominal Operating Cell Temperature	45±2℃
Protection Class	Class II
Fire Rating	UL type 1 or 2 IEC Class C

Mechanical Loading

Front Side Maximum Static Loading	5400Pa
Rear Side Maximum Static Loading	2400Pa
Hailstone Test	25mm Hailstone at the speed of 23m/s

Temperature Ratings (STC)

Temperature Coefficient of Isc	+0.05%/℃
Temperature Coefficient of Voc	-0.230%/℃
Temperature Coefficient of Pmax	-0.290%/℃
