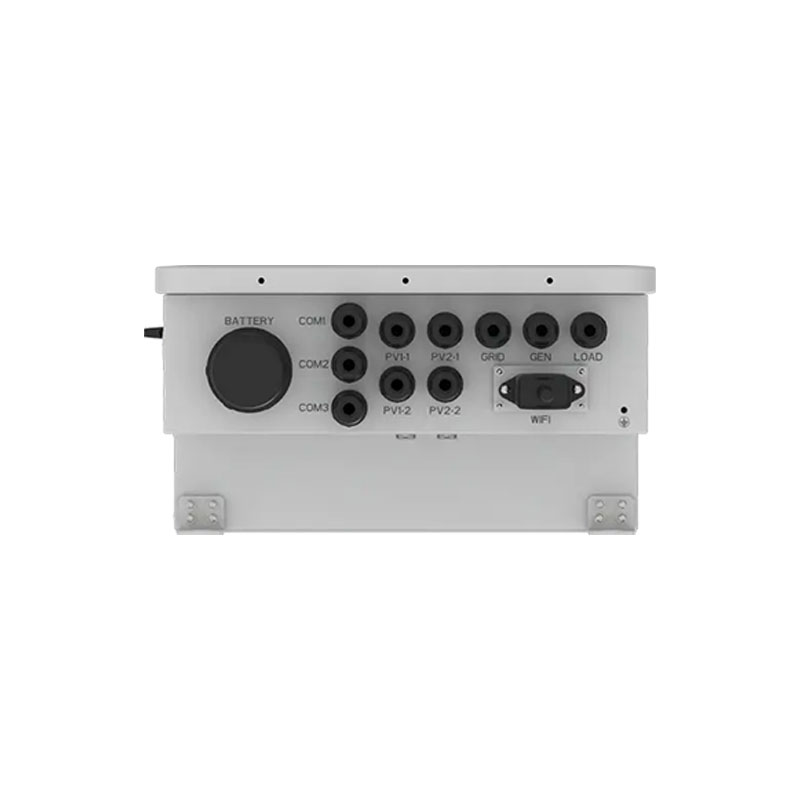

Deye US Version SUN-8K-SG01LP1-US Spilt Phase Hybird Inverter

1699-1800USDVAT excluded

Inquiry Us Add Product

PREV: No previous product NEXT: Deye US Version SUN-12K-SG02LP2-US-AM3 Spilt Phase Hybird Inverter

Product Description

Uni Z International B.V. +39 3444606026

Uni Z International B.V. [email protected]

The SUN-8K-SG01LP1-US is a split-phase hybrid inverter. It has a colorful touch LCD with IP65 protection. It can be AC coupled to retrofit existing solar systems. It supports up to 16 units in parallel for on-grid and off-grid operations and multiple batteries in parallel. Key technical data include a max charging/discharging current of 190A, 6 battery charging/discharging time periods, and the fact that it can store energy from a diesel generator. and comes with a 5 - year/10-year warranty depending on the installation site.

Model	SUN-5K-SG01LP1-US	SUN-6K-SG01LP1-US	SUN-7.6K-SG01LP1-US	SUN-8K-SG01LP1-US
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40-60
Max. Charging Current (A)	120	135	190	190
Max. Discharging Current (A)	120	135	190	190
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of Battery Input	1
PV String Input Data
Max. PV Input Power (W)	6500	7800	9880	10400
Max. PV Input Voltage (V)	500
Start-up Voltage (V)	125
MPPT Voltage Range (V)	150-425
Rated PV Input Voltage (V)	370
Max. Operating PV Input Current (A)	13+13	26+13	26+26
Max. Input Short-Circuit Current (A)	22+22	44+22	44+44
No. of MPP Trackers/ No. of Strings MPP Tracker	2/1+1	2/2+1	2/2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W)	5000	6000	7600	8000
Max. AC Input/Output Apparent Power (VA)	5500	6600	8360	8800
Rated AC Input/Output Current (A)	20.8	25	31.7	33.3
Max. AC Input/Output Current (A)	22.9	27.5	34.8	36.7
Max. Continuous AC Passthrough (grid to load) (A)	40		50
Peak Power (off-grid) (W)	2 times of rated power, 10s
Power Factor Adjustment Range	0.9-1
Rated Input/Output Voltage/Range (V)	120/240; 208 0.88Un<U<1.1Un
Rated Input/Output Grid Frequency/Range(Hz)	60/55-65
Grid Connection Form	2L+N+PE
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DC Injection Current	<0.5% In
Efficiency
Max. Efficiency	97.60%
Euro Efficiency	96.50%
MPPT Efficiency	>99%
Equipment Protection
Integrated	DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level
Surge Protection Level	TYPE II(DC), TYPE II(AC)
Interface
Communication Interface	RS485/RS232/CAN
Monitor Mode	GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range (℃)	-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity	0-100%
Permissible Altitude	2000m
Noise (dB)	<30
Ingress Protection(IP) Rating	TYPE3R
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC), OVC III(AC)
Cabinet Size (WxHxD mm)	420×670×233 (Excluding Connectors and Brackets)
Weight (kg)	30
Type of Cooling	Intelligent Air Cooling
Warranty	5 Years/10 Years the Warranty Period Depends on the Final Installation Site of the Inverter, More Info Please Refer to Warranty Policy
Grid Regulation	EN 50549, UNE 217002, NRS 097, IEEE 1547.1, SRD V2.0
Safety / EMC Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2, UL 1741
