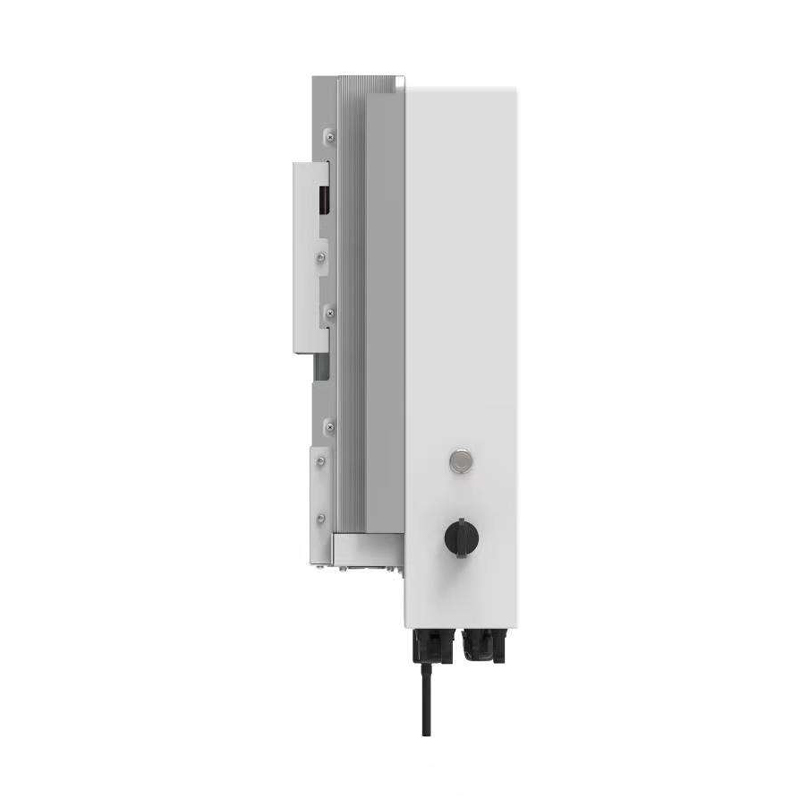

Deye SUN-15K-SG01HP3-EU-AM2 Hybrid Inverter

1530~ 1560€/pcVAT excluded

Inquiry Us Add Product

PREV: Deye SUN-12K-SG01HP3-EU-AM2 Hybrid Inverter NEXT: Deye SUN-20K-SG01HP3-EU-AM2 Hybrid Inverter

Product Description

Uni Z International B.V. +39 3444606026

Uni Z International B.V. [email protected]

Deye SUN 10/12/15/20K-SG01HP3-EU-AM2 inverter is a phase hybrid inverter with a High voltage battery of 160-700V, ensuring system efficiency and less heat dissipation. With a compact design and high-power density, this series supports a 1.3 DC/AC ratio, saving device investment. It supports a three-phase unbalanced output, extending the application scenarios.
Emergency power with a switching time of less than 4ms

Up to 10 units are possible in parallel operation, grid-connected, and isolated operation.
Support for batteries in parallel operation.

Max. charge & discharge current of 240A.

6 periods for charging & charging the battery programmable.

Connection and control of external generators are possible. These can also charge the battery.

Model	SUN-5K-SG01 HP3-EU-AM2	SUN-6K-SG01 HP3-EU-AM2	SUN-8K-SG01 HP3-EU-AM2	SUN-10K-SG01 HP3-EU-AM2	SUN-12K-SG01 HP3-EU-AM2	SUN-15K-SG01 HP3-EU-AM2	SUN-20K-SG01 HP3-EU-AM2	SUN-25K-SG01 HP3-EU-AM2
Battery Input Data
Battery Type	Lithium-ion
Battery Voltage Range (V)	160~700
Max. Charging Current (A)	30		37					50
Max. Discharging Current (A)	30		37					50
Number of Battery Input	1
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)	6500	7800	10400	13000	15600	19500	26000	32500
Max. DC Input Voltage (V)	1000
Start-up Voltage (V)	180
MPPT Range (V)	150-850
Full Load DC Voltage Range (V)	195-850	195-850	260-850	325-850	340-850	420-850	500-850	625-850
Rated DC Input Voltage (V)	600
PV Input Current (A)	20+20				26+20		26+26
Max. PV ISC(A)	30+30				39+30		39+39
No.of MPP Trackers	2
No.of Strings per MPP Tracker	1+1				2+1		2+2
AC Output Data
Rated AC Output and UPS Power (W)	5000	6000	8000	10000	12000	15000	20000	25000
Max. AC Output Active Power (W)	5500	6600	8800	11000	13200	16500	22000	27500
AC Output Rated Current (A)	8.4/8	10/9.6	13.4/12.8	16.7/16	20/19.2	25/24	33.4/31.9	41.7/39.9
Max. AC Output Current (A)	7.6/7.3	9.1/8.7	12.2/11.6	15.2/14.5	18.2/17.4	22.8/21.8	30.4/29	37.9/36.3
Max. Three-phase Unbalanced Output Current(A)	13	13	18	22	25	30	35	41.7
Max. Continuous AC Passthrough (A)	40				80
Peak Power (off-grid)	1.5 time of rated power, 10 S
Generator Input/Smart Load /AC Couple Current (A)	7.6/40/7.6	9.1/40/9.1	12.2/40/12.2	15.2/40/15.2	18.2/80/18.2	22.8/80/22.8	30.4/80/30.4	37.9/80/37.9
Power Factor	0.8 leading to 0.8 lagging
Output Frequency and Voltage	50/60Hz; 3L/N/PE 220/380, 230/400Vac
Grid Type	Three Phase
Total Harmonics Current Distortion (THDi)	<3% (of nominal power)
DC Current Injection	<0.5% In
Efficiency
Max. Efficiency	97.60%
Euro Efficiency	97.00%
MPPT Efficiency	99.90%
Protection
Integrated	Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection, Arc Fault Circuit Interruption (AFCI optional)
Over Voltage Category	DC Type II/AC Type III
Certifications and Standards
Grid Regulation	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety EMC / Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range (℃)	-40-60℃, >45℃ Derating
Cooling	Free Cooling		Smart Cooling
Noise (dB)	≤55 dB
Communication with BMS	CAN
Weight (kg)	30.5
Cabinet Size (WxHxD mm)	408×638×237 (Excluding Connectors and Brackets)
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	5 Years (10 Years Optional)
