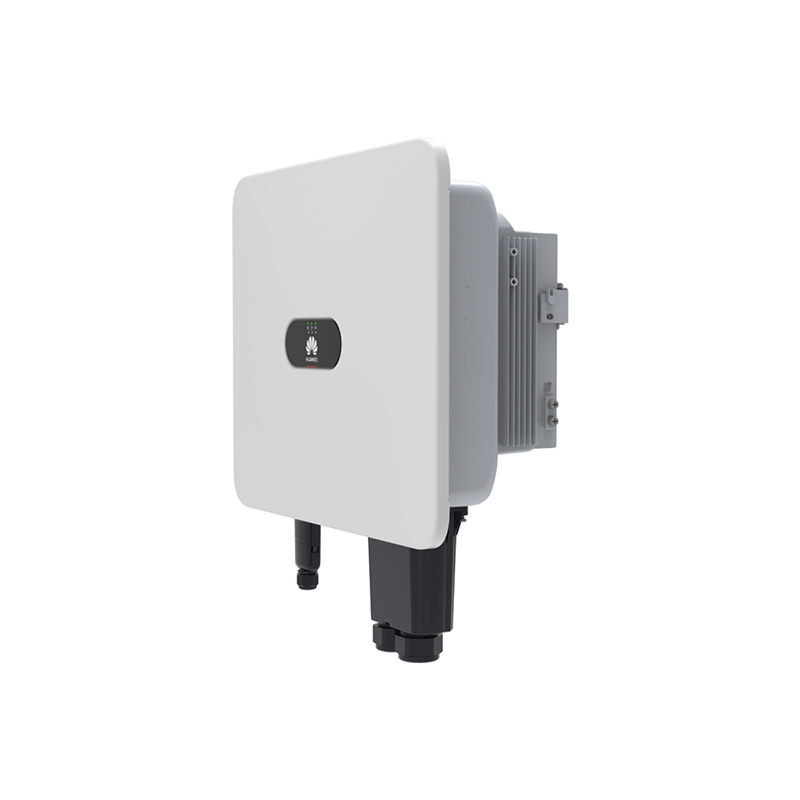

Huawei 15KW SUN 2000-15KTL-M5

1545~ 1700€/pcVAT excluded

Technical Specification	SUN2000-15KTL-M5
Efficiency
Max. efficiency	98.4%
European weighted efficiency	98.0%
Input
Recommended max.PV power 1	22,500 Wp
Max. input voltage	1100 V
Full-load MPPT voltage range	410～800 V
MPPT operating voltage range	200～1000 V
Start-up voltage	200 V
Rated input voltage	600 v
Max. input current per MPPT	30 A(two-string)/20 A(single string)
Max. short-circuit current	40 A
Number of MPP trackers	2
Max. number of inputs	4
Output
Grid connection	Three-phase
Rated output power	15,000 W
Max. apparent power	16,500 VA
Rated output voltage	220 V AC/380 V AC, 230 V AC/400 V AC, 239.6 V AC/415V AC, 3W + N + PE
Rated AC grid frequency	50 Hz/60 Hz
Max. output current	25.2 A/380 V AC 23.9 A/400 V AC 23.1 A/415 V AC
Adjustable power factor	0.8 leading …0.8 lagging
Max. total harmonic distortion	≤3%
Protection Feature
Overvoltage category	PV Ⅱ /AC Ⅲ
Input-side disconnection device	Yes
Anti-islanding protection	Yes
AC over-current protection	Yes
DC reverse polarity protection	Yes
String fault detection	Yes
DC surge protection	TYPE II
AC surge protection	CLASS II
Residual current monitoring unit	Yes
Arc fault protection	Yes
Ripple receiver control	Yes
General Specification
Operating temperature range	–25°C to +60°C (–13°F to +140°F)
Relative humidity	0% ~ 100% RH
Max. operating altitude	4,000 m (13,123 ft.) (Derating above 2000 m)
Cooling	Smart air cooling
Display	LED Indicators; Integrated WLAN + FusionSolar App
Communication	RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional) 4G/3G/2G via Smart Dongle-4G (Optional)
Weight (with mounting plate)	21 kg (46.4 lb)
Dimensions (W x H x D) (incl. mounting plate)	546 mm x 460 mm x 228 mm (21.5 in. x 18.1 in. x 9.0 in.)
IP rating	IP66
Optimizer Compatibility
DC MBUS compatible optimizer	SUN2000-450W-P2, SUN2000-600W-P, MERC-1100W-P, MERC-1300W-P
Standards Compliance (More Available Upon Request)
Safety	EN/IEC 62109-1, EN/IEC 62109-2
Grid connection standards	G99, EN 50549, CEI 0-21, CEI 0-16, VDE-AR-N-4105, VDE-AR-N-4110, C10/11, ABNT, VFR 2019, UNE 217001, UNE 217002, RD 244, TOR D4, IEC61727, IEC62116

*1 The inverter max. input PV power is 40,000 Wp when long strings are designed and fully connected with SUN2000-450W-P power optimizers.

*2 The max. input voltage is the upper limit of the DC voltage. Any higher input DC voltage would probably damage the inverter.

*3 Any input DC voltage beyond the operating voltage range may result in inverter malfunction.

Disclaimer: the preceding values are measured by an internal laboratory of Huawei in a specific environment. The actual values may vary with products, software versions, usage conditions, and environmental factors.
