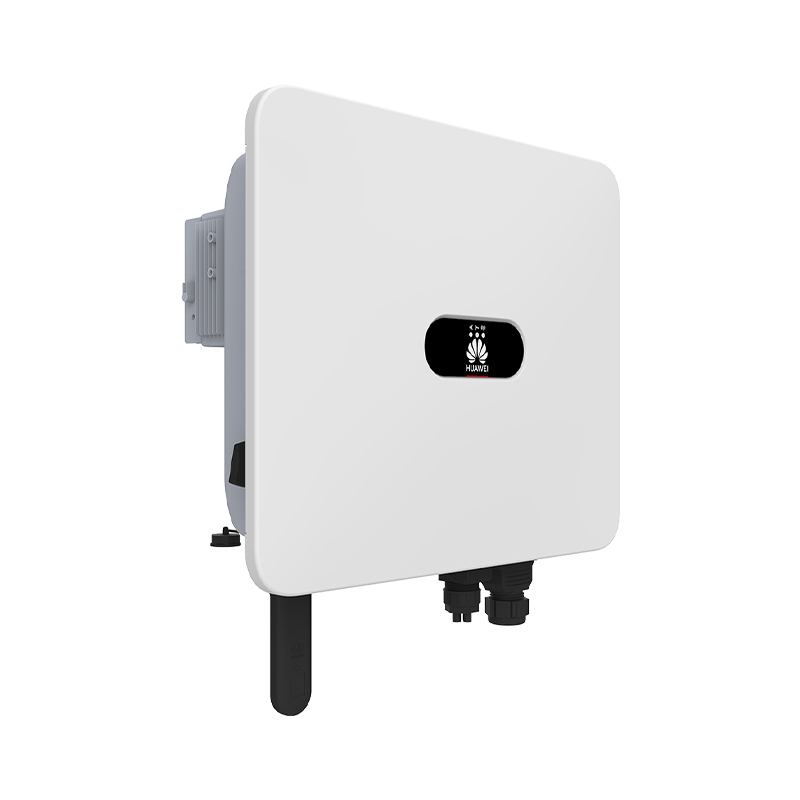

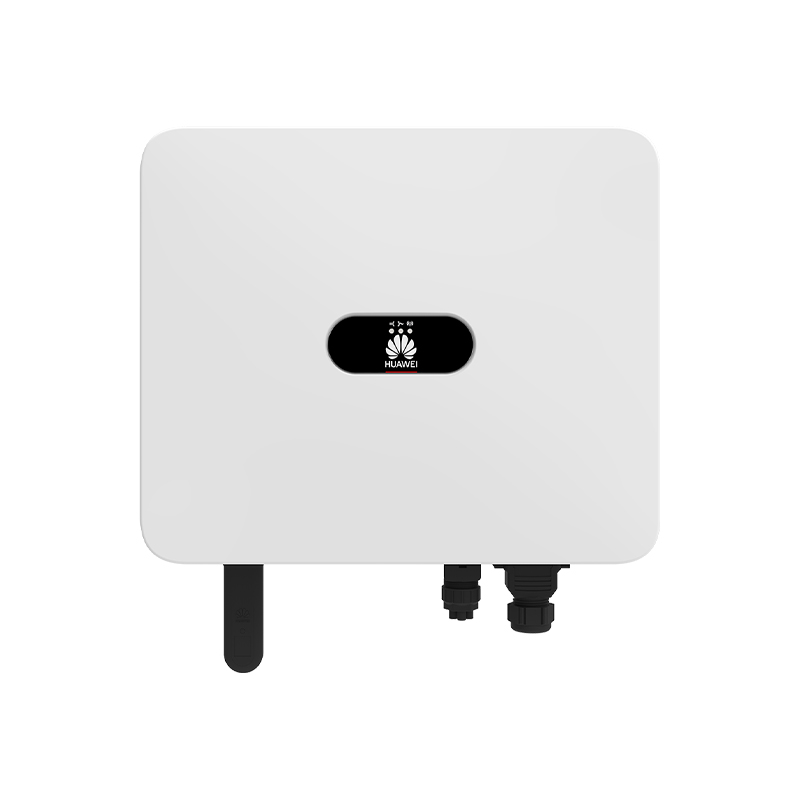

Huawei 15KW SUN2000-15KTL-MB0

1920~2120 €/pcVAT excluded

Technical Specification 1	SUN2000-15K-MB0
Efficiency
Max efficiency	98.4%
European weighted efficiency	98.0%
DC Input
Recommended max.PV power	22.500 Wp
Max. input voltage ²	1,100 V
Max. input current per MPPT	30 A(two strings)/20 A(single string)
Max. short-circuit current	40 A
Start-up voltage	200 V
MPPT operating voltage range	200V～1,000 V
Full-load MPPT voltage range	410 V～800 V
Rated input voltage	600 V
Max. number of inputs	4
Number of MPP trackers	2
Smart String Energy Storage System Terminal
Compatible Smart String ESS	LUNA2000-5/10/15-SO
Number of terminals	2
Max. charging power	21 kW(Single string)/25 kW (Two strings)
Max. discharge power	16.5 kW
Max. operating current	26.25 A(per string
Operating voltage range	600 V～980 V
Output
Rated output power	15,000 W
Max. apparent power	16,500 VA
Max. active power (cosφ =1)	16,500 W
Rated output voltage
Rated output current	22.8A/380 Vac
	21.7 A/400 Va
	209A1415 Vac
Max. output current	25.2 A/380 Vac
	23.9 A/400 Vac
	23.1 A/415 Vac
Rated AC grid frequency	50 Hz/60 Hz
Adjustable power factor	0.8 leading …0.8 lagging
Max. total harmonic distortion	≤3%
Feature &Protection
Overvoltage category	PV Ⅱ /AC Ⅲ
Input-side disconnection device	Yes
Anti-islanding protection	Yes
AC over-current protection	Yes
DC reverse-polarity protection	Yes
DC surge protection	TYPE II
AC surge protection	Yes, compatible with the TYPE Il protection class according to EN/IEC 61643-11
DC insulation resistance detection	Yes
Residual current monitoring unit	Yes
Arc fault protection	Yes
General Data
Operating temperature range	-25 ℃~+60 ℃ (-13°F～140 °F)
Relative humidity	0%RH~100 %RH
Max. operating altitude	4,000 m(13,123 ft.)(Derating above 2,000 m)
Cooling	Smart air cooling
Display	LED indicators, Integrated WLAN +FusionSolar APP
Communication	RS485;WLAN /Ethernet via Smart Dongle-WLAN-FE(Optional) 4G/3G/2G via Smart Dongle-4G(Optional);EMMA(Optional)
Weight	21 kg
Dimensions (WxHxD)	546 x 460 x 241.5 mm
Protection level	IP66
Max. number of paralleled unit (with Smart String ESS)	3
Optimizer Compatibility
Compatible optimizer	SUN2000-450W-P2,SUN2000-600W-P,MERC-1100W-P,MERC-1300W-P
Standards Compliance (More Available Upon Request)
Certificates	EN/IEC62109-1,EN/IEC62109-2
Grid connection standards	IEC61727, IEC62116, IEC61683, EN50530, ABNT NBR 16149/16150, MEA/PEA, G99, IRR-DCC-MV/IRR-TIC, Philippine Grid Code Resolution No. 07, NRS 097-2-1, EN50549-1, VDE4105, UTE15-712-1/VFR 2019, UNE217002, NTS631, RD244(UNE217001), PPDS, ROGA, TOR Erzeuger, CEI 0-21:2020-12 V1, CEI-016, C10/C11, EN50549-2, VDE4110

*1 For Thailand, only SUN2000-12K-MB0 & SUN2000-15K-MB0 & SUN2000-20K-MB0 are available.

*2 The maximum input voltage is the upper limit of the DC voltage. Any higher input DC voltage would probably damage the inverter.

*3 Any DC input voltage beyond the operating voltage range may result in the inverter's improper operation.

Disclaimer: the preceding values are measured by an internal laboratory of Huawei in a specific environment. The actual values may vary with products, software versions, usage conditions, and environmental factors.
