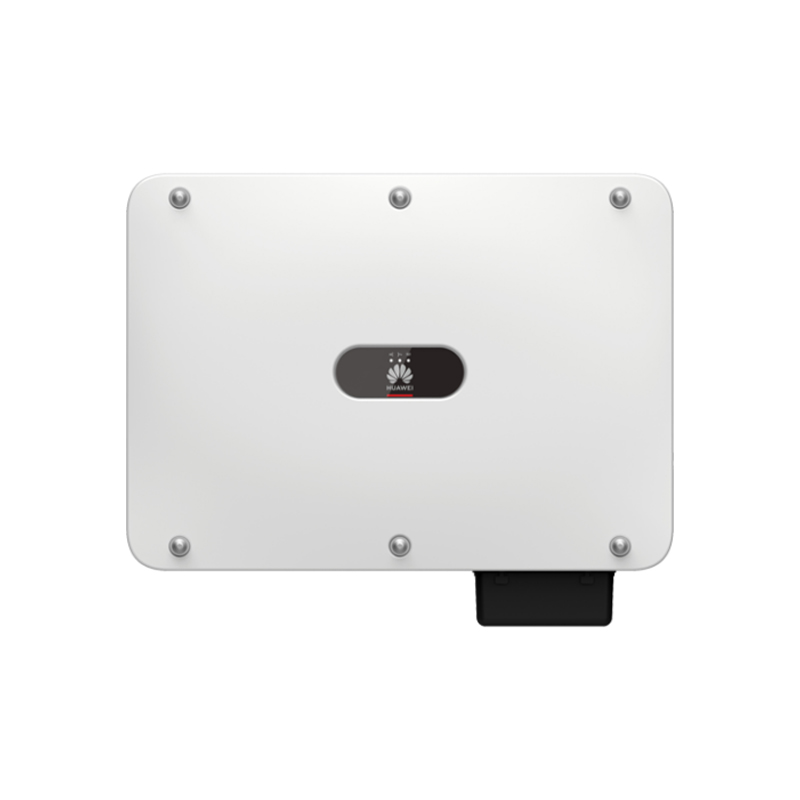

Huawei 50KW SUN 2000-50KTL-M3

2320~2250 €/pcVAT excluded

Technical Specification	SUN2000-50KTL-M3
Efficiency
Max.Efficiency	98.5%
European Efficiency	98.0%
Input
Max.Input Voltage 1	1,100 V
Max.Current per MPPT	30 A
Max.Current per Input	20 A
Max.Short Circuit Current per MPPT	40 A
Start Voltage	200 V
MPPT Operating Voltage Range 2	200V～1,000 V
Rated Input Voltage	600 V
Number of Inputs	8
Number of MPP Trackers	4
Output
Rated AC Active Power	50,000 W
Max.AC Apparent Power	55,000 VA
Max.AC Active Power (cosp=1)	55,000 W
Rated Output Voltage	400 Vac/ 480 Vac, 3W+(N)+PE
Rated AC Grid Frequency	50 Hz/ 60 Hz
Rated Output Current	72.2 A @400Vac, 60.1 A @480Vac
Max.Output Current	79.8 A @400Vac, 66.5 A @480Vac
Adjustable Power Factor Range	0.8 LG …0.8 LD
Max.Total Harmonic Distortion	<3%
Protection
Input-side Disconnection Device	Yes
Anti-islanding Protection	Yes
AC Overcurrent Protection	Yes
DC Reverse-polarity Protection	Yes
PV-array String Fault Monitoring	Yes
DC Surge Arrester	Type ll
AC Surge Arrester	Type ll
DC Insulation Resistance Detection	Yes
Residual Current Monitoring Unit	Yes
Arc Fault Protection	Yes
Ripple Receiver Control	Yes
Integrated PID Recovery 3	Yes
Communication
Display	LED Indicators, WLAN +APP
RS485	Yes
Smart Dongle	WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional) 4G/ 3G / 2G via Smart Dongle-4G (Optional)
Monitoring BUS (MBUS)	Yes (IsolationTransformer required)
Optimizer Compatibility
DC MBUS Compatible Optimizer	MERC-1100/1300W-P
General Data
Dimensions (WxH x D)	640 x 530 x 270 mm (25.2 x 20.9 x 10.6 inch)
Weight (with mounting plate)	49 kg (108.1 lb)
Operating Temperature Range	-25°C ~ 60°C (-13°F ~ 140°F)
Cooling Method	Smart Air Cooling
Max.Operating Altitude	4,000 m (13,123 ft.)
Relative Humidity	0% RH ~ 100% RH
DC Connector	Amphenol HH4
AC Connector	Waterproof Connector + OT/DT Terminal
Protection Degree	IP 66
Topology	Transformerless
Nighttime Power Consumption	≤5.5W
Standard Compliance(more available upon request)
Safety	EN 62109-1/-2, IEC 62109-1/-2, IEC 62116, IEC 60068, IEC 61683
Grid Connection Standards	IEC 61727, VDE-AR-N4105, VDE 0126-1-1, BDEW, G59/3, UTE C 15-712-1, CEI 0-16, CEI 0-21, RD 661, RD 1699, P.O. 12.3,RD 413, EN-50438-Turkey, EN-50438-Ireland, C10/11, MEA, Resolution No.7, NRS 097-2-1, DEWA

1. The maximum input voltage is the upper limit of the DC voltage. Any higher input DC voltage would probably damage the inverter.
2. Any DC input voltage beyond the operating voltage range may result in the inverter's improper operation.
3. SUN2000-30~50KTL-M3 raises potential between PV- and ground to above zero through integrated PID recovery function to recover module degradation from PID. Supported module types include: P-type(mono, poly), N-type (nPERT, HIT)
